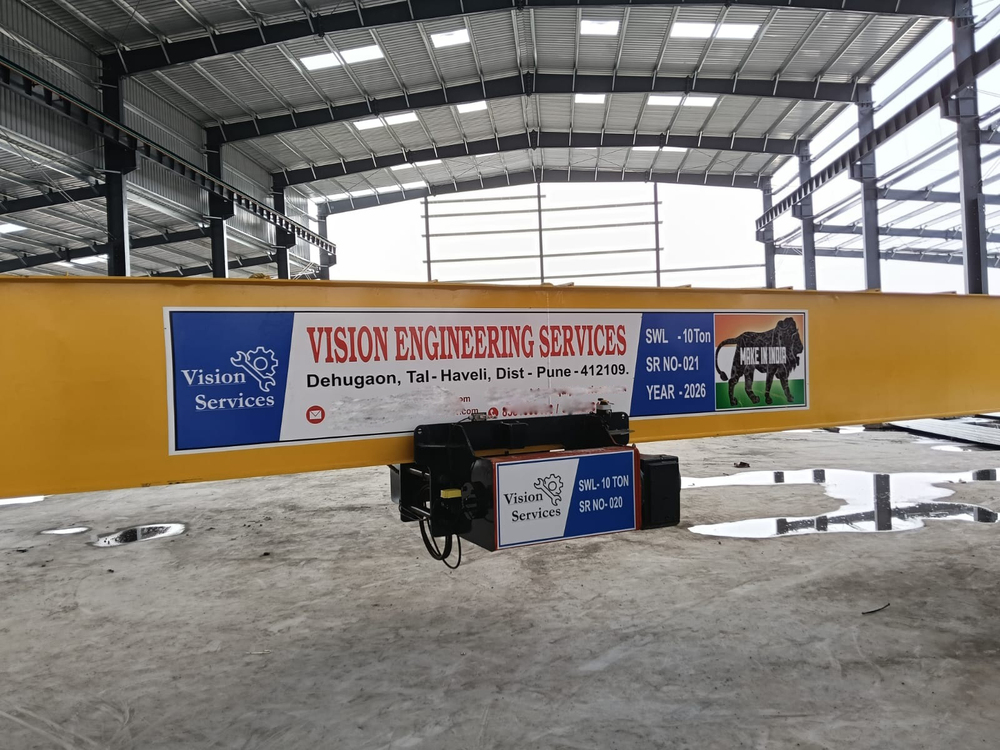

Industrial Eot Cranes

Price 2000000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Industrial Eot Cranes Specification

Application
Industrial Material Handling

Emergency Stop
Yes

Electric Hoist
Included

Gearbox
Helical Or Planetary

Traveling Speed
20 mm/m

Brake
Electromagnetic

Color
Yellow

Condition
New

Usage
Industrial Lifting

Load Capacity
10 Tonne

Max. Lifting Height
9 Meter (m)

Max. Lifting Load
10 Tonne

Product Type
Single Girder Eot Cranes

Rated Lifting Moment
Customized

Weight
125000 Kilograms (kg)

Span
24 Meter

Lifting Mechanism
Wire Rope Hoist

Lifting Speed
4 mm/m

Width
100 Meter (m)

Operating Mode
Remote

Power Supply
3 Phase AC

Voltage
415 Volt (v)

Noise Level
Low Noise Operation

Insulation Class
F/H

Working Class
M5-M7

Control System
Pendant/Remote/Control Cabin

Duty Cycle
Heavy Duty

Protection Grade
IP54/IP55

Painting Thickness
80-120 Microns

Wheel Material
Alloy Steel

Motor Type
Squirrel Cage Induction

Installation
On-Site Support Available

Design Standard
IS: 3177 / IS: 807

Main Beam Type
Box Type Girder

Ambient Temperature
-20°C to +50°C

Industrial Eot Cranes Trade Information

Minimum Order Quantity
1 Unit

FOB Port
INIDIA

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Supply Ability
10 Units Per Month

Delivery Time
1

Sample Available
Yes

Packaging Details
Standard Packing

Main Domestic Market
All India

Certifications
ISO,

About Industrial Eot Cranes

1. Basic Technical Parameters

Type: Single Girder / Double Girder
Capacity (SWL): 0.5 Ton to 500 Ton (customizable)
Span: 3 m to 30 m (or more as per requirement)
Lifting Height: 6 m to 30 m
Duty Class: M3, M5, M7, M8 (IS 3177 / IS 807)
Crane Type: Electrically Operated Overhead Travelling

2. Electrical Specifications

Power Supply: 415V 10%, 3 Phase, 50 Hz AC
Control Voltage: 24V / 48V (optional safety control)
Panel Type: Flameproof / Dustproof (optional)
Protection Class: IP54 / IP55

3. Motion & Speed Parameters

Hoisting Speed: 3 8 m/min (VFD optional)
Cross Travel Speed (Trolley): 10 20 m/min
Long Travel Speed (Bridge): 20 25 m/min
Speed Control: Single / Dual / Variable (VFD)

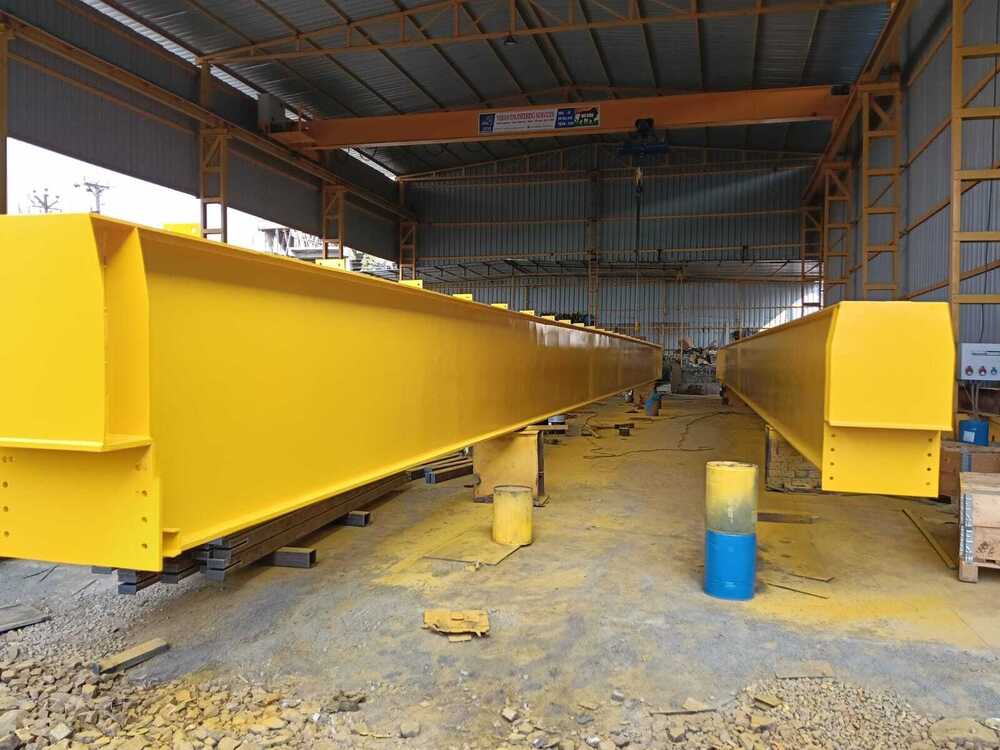

4. Structural Details

Girder Type:
- Single Girder (light-duty)
- Double Girder (heavy-duty)
Material: IS 2062 Structural Steel
Design Standard: IS / ISO / FEM / CMAA compliant
Factor of Safety: As per IS standards

5. Hoisting & Trolley Mechanism

Hoist Type: Wire Rope Hoist / Chain Hoist
Mounting: Underslung / Top-running
Trolley Type: Motorized
Hook Type: Forged Hook with Safety Latch

6. Drive & Motor Details

Motor Type: Squirrel Cage Induction Motor
Insulation Class: F / H
Duty Rating: S4 / S5
Drive System:
- Geared Drive
- Direct Drive

7. Braking System

Brake Type: Electromagnetic Disc / Shoe Brake
Fail-Safe Braking: Provided for all motions
Emergency Stop: Available

8. Control System

Pendant Control (Push Button)
Radio Remote Control (Optional)
Cabin Control (Heavy Duty Cranes)
Automation: PLC / VFD (Optional)

9. Safety Features

Overload Protection
Limit Switches (Upper/Lower)
Anti-collision Device
Emergency Stop System
Thermal Protection for Motors
Anti-sway System (Optional)

10. Power Supply System

For Hoist/Trolley: Festoon Cable System / Drag Chain
For Crane Travel: Shrouded Bus Bar System

11. Environmental Conditions

Operating Temperature: 0C to 40C
Application Areas:
- Steel Plants
- Warehouses
- Heavy Engineering
- Power Plants
- Automobile Industry

12. Optional Features

VFD for Smooth Operation
Load Display Indicator
Flameproof Crane for Hazardous Areas
Grab Bucket / Magnet Attachment
Automated Crane System

13. Typical Example (5 Ton Crane)

Capacity: 5 Ton
Span: 1220 m
Lift Height: 612 m
Hoisting Speed: ~5 m/min
Power Supply: 415V, 3 Phase

Experience industrial lifting excellence with our masterful EOT Cranes, designed for heavy-duty applications and recognized as a best-seller across India. With a grandiose load capacity of up to 100 tons, these cranes comply with IS: 3177/IS: 807 standards, offering first-rate safety and performance. Access advanced features such as IP54/IP55 protection, low noise operation, and a robust squirrel cage induction motor. Available with special rates and on-site support, our EOT cranes guarantee superior material handling for warehouses, plants, and construction sites.

Versatile Uses and Superior Features for Every Industry

Our Industrial EOT Cranes are engineered for a range of applications, from general industrial material handling to specialized heavy goods operations. Featuring a durable box type girder main beam, electromagnetic brakes, helical or planetary gearboxes, and a reliable wire rope hoist, these cranes ensure efficient and safe lifting. The machines are suitable for both indoor and outdoor settings, thanks to their robust alloy steel construction and high-quality surface finish, making them indispensable in industrial environments.

Expansive Markets, Reliable Packing & Dispatch

We cater to both main domestic markets and leading export destinations, handling goods transport with precision. Our EOT cranes are properly packaged and dispatched to guarantee safe arrival at your site. We ensure professional packaging standards and offer sample availability for evaluation. Clients benefit from seamless logistics management and prompt delivery, making us a preferred partner for enterprises seeking efficiency in both local and international material handling operations.

FAQ's of Industrial Eot Cranes:

Q: How do I determine the correct crane specification for my industrial requirements?

A: Our expert team assists you in assessing site conditions, application, load capacity, and unique operational needs to recommend the ideal EOT crane configuration, ensuring your facility receives a tailored solution.

Q: What makes your EOT cranes suitable for heavy-duty operations?

A: Designed to meet IS: 3177 and IS: 807 standards, our cranes feature high load capacities (up to 100 tons), robust alloy steel wheels, and continuous duty cycles, guaranteeing reliability in demanding material handling environments.

Q: Where do you provide on-site installation support for EOT cranes?

A: We offer comprehensive on-site installation and commissioning across India, ensuring optimal crane performance and safety compliance at your industrial location.

Q: What benefits do IP54/IP55 protection and Class F/H insulation offer?

A: IP54/IP55 protection shields the crane mechanisms from dust and water ingress, while Class F/H insulation ensures thermal safety and longevity of the electrical components, even in harsh industrial settings.

Q: What is the process for placing an order and ensuring timely delivery?

A: You can submit an inquiry or request a sample; our team will guide you through specification finalization, packaging, goods transport, and ensure your EOT crane is dispatched and delivered efficiently.
